PurchaseOrder Schema
PurchaseOrder Schema : PurchaseOrderType Complex Type
PurchaseOrderType Complex Type
Description
Describes the purchase order.
Namespace (none)

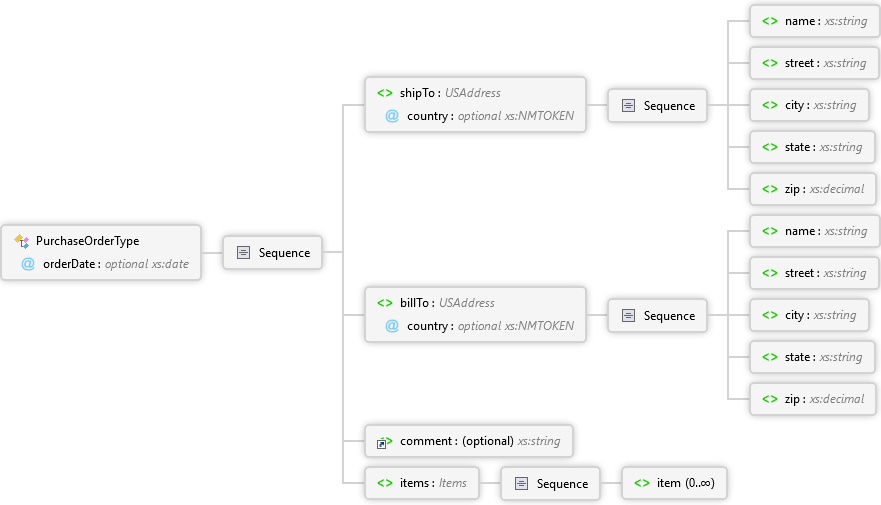

Diagram
item Element Sequence items Element comment Element zip Element state Element city Element street Element name Element Sequence billTo Element zip Element state Element city Element street Element name Element Sequence shipTo Element Sequence PurchaseOrderType Complex Type
Overview
PurchaseOrderType
Describes the purchase order.
orderDate optional xs:date
The date of the order.
Sequence
shipTo USAddress Complex Type
The shipping address.
country optional xs:NMTOKEN
The country name.
Sequence
name xs:string
The name of the recipient.
street xs:string
The street name and house number.
city xs:string
The city name.
state xs:string
The state name.
zip xs:decimal
The zip code.
billTo USAddress Complex Type
The billing address.
country optional xs:NMTOKEN
The country name.
Sequence
name xs:string
The name of the recipient.
street xs:string
The street name and house number.
city xs:string
The city name.
state xs:string
The state name.
zip xs:decimal
The zip code.
comment optional xs:string
Any comments about the order/item.
items Items Complex Type
The items in the order.
Sequence
item 0..∞
Describes an item in the purchase order.
itemAttributeGroup
Sequence
productName xs:string
The name of the product.
quantity Restriction of xs:positiveInteger
The number of units.
USPrice xs:decimal
The price of the item.
comment optional xs:string
Any comments about the order/item.
shipDate optional xs:date
The date the item was shipped.
Used By
purchaseOrder Element
Attributes
NameTypeUseDefaultFixedDescription
orderDatexs:dateoptional  The date of the order.
Source
<xs:complexType name="PurchaseOrderType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation xml:lang="en">Describes the purchase order.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="shipTo" type="USAddress">
      <xs:annotation>
        <xs:documentation xml:lang="en">The shipping address.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="billTo" type="USAddress">
      <xs:annotation>
        <xs:documentation xml:lang="en">The billing address.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="comment" minOccurs="0" />
    <xs:element name="items" type="Items">
      <xs:annotation>
        <xs:documentation xml:lang="en">The items in the order.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
  <xs:attribute name="orderDate" type="xs:date">
    <xs:annotation>
      <xs:documentation xml:lang="en">The date of the order.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
See Also
PurchaseOrder Schema
